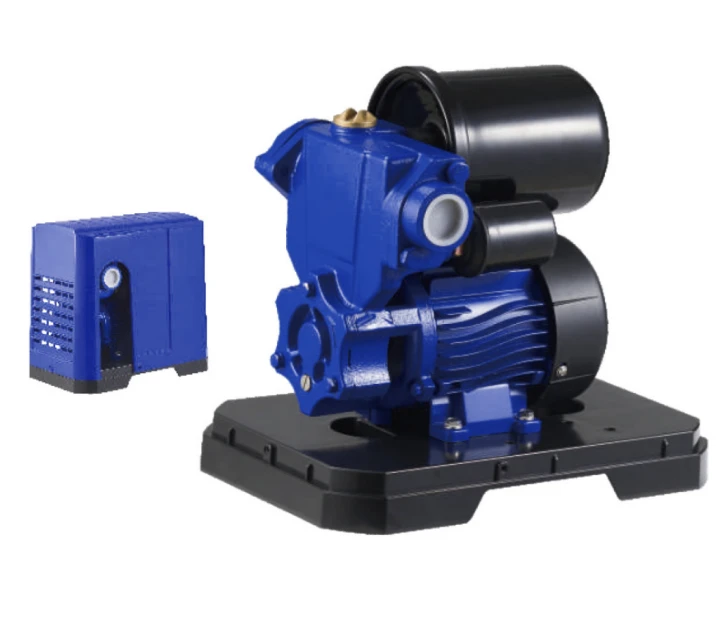

Peripheral/Vortex Pump Booster Pump Series A
Pumps installation applications
These pumps are suitable for handling clean water not containing abrasive particles and fuids which are not chemically aggressive to the pump components. Reliable, economical and simple to use,they are suitable for domestic applications and the automatic distribution of water from surge tanks, watering gardens and for boosting insuffcient mains water pressure. These pumps should be installed in a covered area, protected against the weather.
Performance
※High heads with respect to power requirements.
※Stable operating curves, with small variations in delivery rates with respect to large variations in the pressure demand.
※High tolerance of the presence of entrained air in the liquid being pumped.
※Suction capacity up to 9 meters.
|
N. |
DESCRIPTION |
N. |
DESCRIPTION |
|
1 |
Discharge plug |
12 |
Pressure switch |
|
2 |
Pump cover |
13 |
Pressure switch |
|
3 |
Capacitor cover |
14 |
Front cover |
|
4 |
Capacitor |
15 |
Charge plug |
|
5 |
Casing with wound stator |
16 |
Check valve |
|
6 |
Driving cap |
17 |
Suction flange |
|
7 |
Fan |
18 |
Mechanical seal |
|
8 |
Fan cover |
19 |
Impeller |
|
9 |
Bearing |
20 |
"O"ring |
|
10 |
Rotor |
21 |
Shell |
|
11 |
Pressure tank |
22 |
Baseboard |
Technical specifcation
| products |
 |
 |
 |
 |
|
MODEL |
Auto250+Cover |
Auto370+Cover |
Auto550+Cover |
Auto750+Cover |
|
Power |
250W |
350W |
550W |
750W |
|
Flow max(L/h) |
30 |
40 |
45 |
50 |
|
Head max(m) |
30 |
35 |
45 |
55 |
|
Outlet |
1" |
1" |
1" |
1" |
|
Inlet |
1" |
1" |
1" |
1" |
