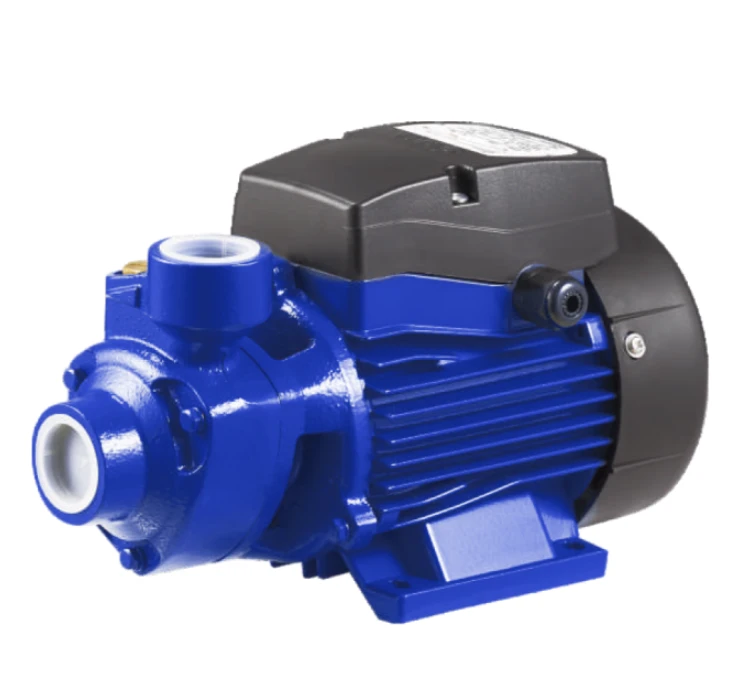

Peripheral/Vortex Pump QB Series
Pumps installation applications
These pumps are suitable for handling clean water not containing abrasive particles and fuids which are not chemically aggressive to the pump components. Reliable, economical and simple to use,they are suitable for domestic applications and the automatic distribution of water from surge tanks, watering gardens and for boosting insuffcient mains water pressure. These pumps should be installed in a covered area, protected against the weather.
Performance
※high heads with respect to power requirements.
※stable operating curves, with small variations in delivery rates with respect to large variations in the pressure demand.
※high tolerance of the presence of entrained air in the liquid being pumped.
|
N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
|
1 |
Bolt |
13 |
Bearing |
25 |
Driving cap |
|
2 |
Pump casing |
14 |
Bearing |
26 |
Bolt |
|
3 |
Charge plug |
15 |
Key |
27 |
Fan |
|
4 |
"O" ring |
16 |
Rotor |
28 |
Fan cover |
|
5 |
Impeller |
17 |
Bolt |
||
|
6 |
Snap ring |
18 |
Terminal cover |
||
|
7 |
Washer |
19 |
Capacitor |
||
|
8 |
Mechanical seal |
20 |
Terminal board |
||
|
9 |
"O" ring |
21 |
Casing with wound stator |
||
|
10 |
Bolt |
22 |
Screw |
||
|
11 |
Pump support |
23 |
Cable presser |
||
|
12 |
Drops guard |
24 |
Fair lead |
Technical specifcation
| products |
 |
 |
 |
 |
 |
|
MODEL |
QB60 |
QB70 |
QB80 |
QB90 |
QB100 |
|
Power |
370W |
600W |
750W |
1100W |
1500W |
|
Flow max(L/min) |
35 |
45 |
55 |
65 |
70 |
|
Head max(m) |
35 |
50 |
65 |
75 |
85 |
|
Outlet |
1" |
1" |
1" |
1" |
1" |
|
Inlet |
1" |
1" |
1" |
1" |
1" |
